Miniscav Active Scavenger Unit
A compact active scavenging unit designed and built by R A Medical in the UK — quietly removes waste nitrous oxide from the surgery to protect staff and patients. CE marked to IEC 60601-1:2005; a dedicated USA / North American model is also available.
Key Features
- The only inhalation sedation product designed and manufactured by R A Medical in the UK
- Dual-diaphragm vacuum pump — quiet, fixed flow and fixed vacuum
- CE marked to IEC 60601-1:2005
- 42 L/min extraction (45 L/min at the nasal mask with an active breathing system)

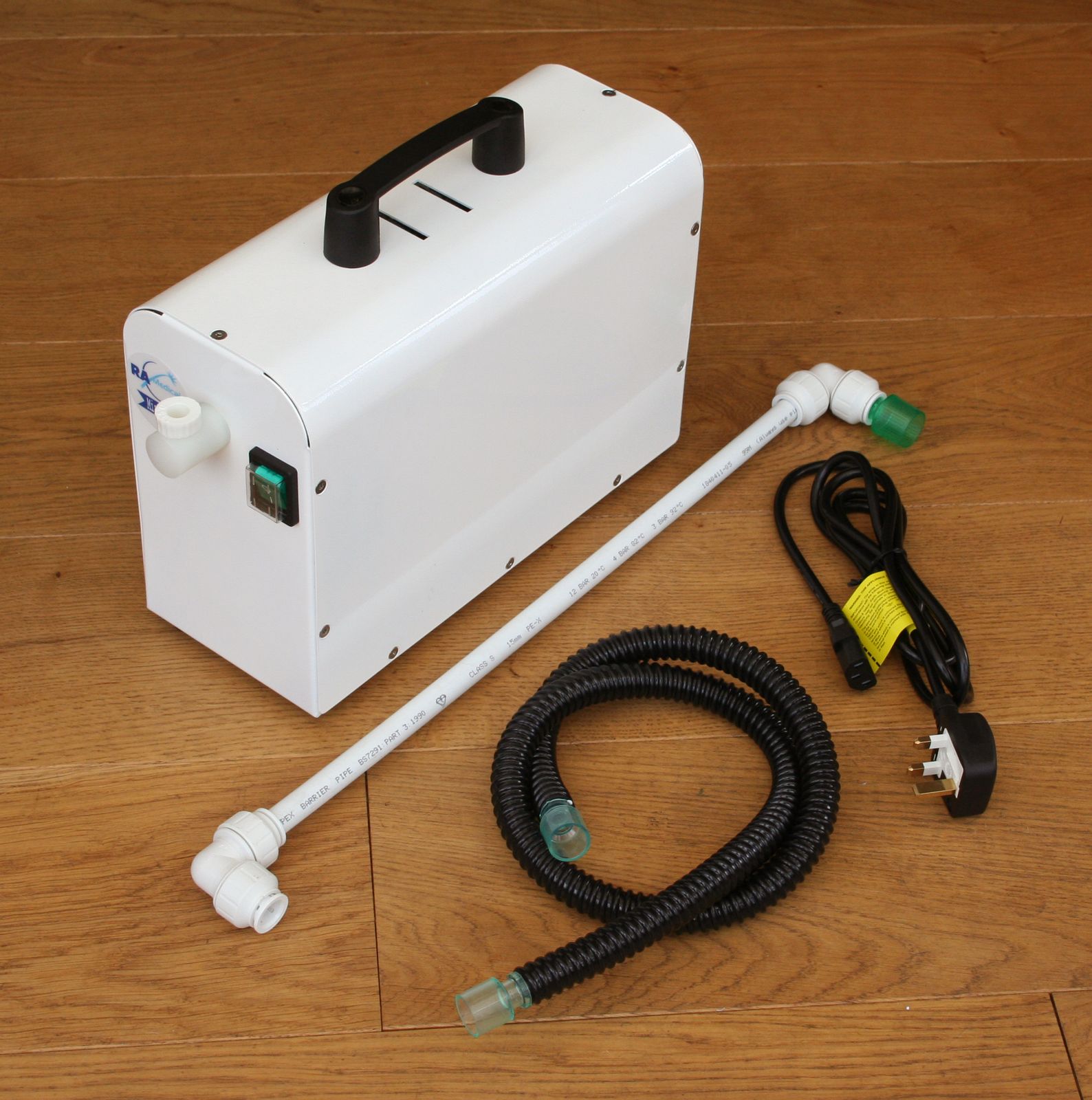

- Rigid external waste vent assembly and 1-metre 15mm transfer hose supplied
- Works with active double-nasal-hood circuits (Porter Brown, Accutron ClearView)
- Tested with Porter, Accutron and McKesson mixer/flowmeter systems
- Standalone — independent of the surgery vacuum, easily retrofitted
- Dedicated USA / North American model available (115 V)
- Backed by R A Medical’s own UK engineering and servicing team
The Miniscav is the one piece of inhalation sedation equipment R A Medical designs and manufactures itself — an active (vacuum-assisted) scavenging unit that removes waste nitrous oxide from the breathing circuit and vents it safely outside. It is the simplest, most reliable way for most practices to meet COSHH and HSE workplace-exposure management for N2O: standalone, independent of the surgery vacuum, and able to deliver the required 45 L/min extraction at the nasal mask. Powered by a dual-diaphragm vacuum pump, the Miniscav delivers a fixed flow of 42 L/min (within +/-3 L/min) at a fixed vacuum of 90 +/-10 mmHg, and exhausts to atmosphere via the supplied rigid external wall vent and 1-metre 15mm transfer hose. It works with active double-nasal-hood breathing circuits such as the Porter Brown and Accutron ClearView, and has been tested with Porter (MDM, MXR, Digital MDM), Accutron (Ultra PC, Digital Ultra) and McKesson mixer/flowmeter systems.
Price
Valid 1 Sept 2026 – 1 Sept 2027
£1,550.00ex VAT
Part No: RA2070
Need advice? Speak to our specialist team.
Technical Specifications
- Type
- Active Scavenging Unit (dual-diaphragm vacuum pump)
- Dimensions
- 140mm (W) x 415mm (L) x 275mm (H)
- Weight
- 9.25 kg
- Power
- 240V (UK & EU model)
- Flow Rate
- 42 L/min +/-3 L/min
- Vacuum
- Fixed, 90 mmHg +/-10 mmHg
- Transfer Hose
- 1-metre 15mm flexible hose with quick-fit connections
- Wall Vent
- Rigid external waste vent assembly supplied
- Power Lead
- 2-metre power lead supplied
- Required Breathing System
- Active (40-45 L/min at the nasal mask) — will not work with passive corrugated hose
- Certification
- CE marked, BS EN 60601-1:2006 (IEC 60601-1:2005)
USA / North American Model
A dedicated North American variant is available with a 115 V power supply, its own front panel configuration and a slightly more compact footprint. See the NA-USA Miniscav manual for full details.
- Type
- Active Scavenging Unit (dual-diaphragm vacuum pump)
- Dimensions
- 160mm (W) x 370mm (L) x 260mm (H) — compact NA footprint
- Weight
- 9.25 kg
- Power
- 115 VAC +/-10%, 60 Hz, 2.0 A
- Flow Rate
- 42 L/min +/-5 L/min
- Vacuum
- Fixed, maximum 90 mmHg +/-10 mmHg
- Outlet Tubing
- Maximum 15 metres (50 ft) in length
- Protection Class
- Class 1 (protectively earthed)
- Mode of Operation
- Continuous
- Certification
- NA model — see NA-USA Miniscav manual, Rev 6
